Ritter by Midmark 222 exam table

The Midmark Ritter 222 Barrier Free powered exam table is designed to lower to just 18-inches from the floor to reduce the risk of injury from lifting patients. The Midmark Ritter 222 has a manual gas spring assist back, compared to the Midmark Ritter 223 which has a fully powered adjustable back. The Ritter 222 examination table makes your patients feel more stable and relaxed while they’re waiting for their consultation as their feet rest on the floor.

• Lowers to 18-inches from the floor.
• Maximum height of 37-inches.
• Precise and smooth patient positioning with minimal effort.
• Built-in pillows.
• Built-in stirrups that lock in four lateral positions.
• Foot extension shelves to expand table length.
• Foot control.

Midmark Ritter 222 Specifications

Dimensions

• Height: 18” to 37” (45.7 to 94 cm)
• Width: 30.5” (77.5 cm)
• Length (Without foot extension): 59.5” (151.1 cm)
• Length (With foot extension): 76” (193 cm)
• Weight: 325 lbs (147 kg)
• Patient Weight Capacity: 400 lbs (181.4 kg)

Range of Motion

• Height: 18” to 37” (45.7 to 94 cm)

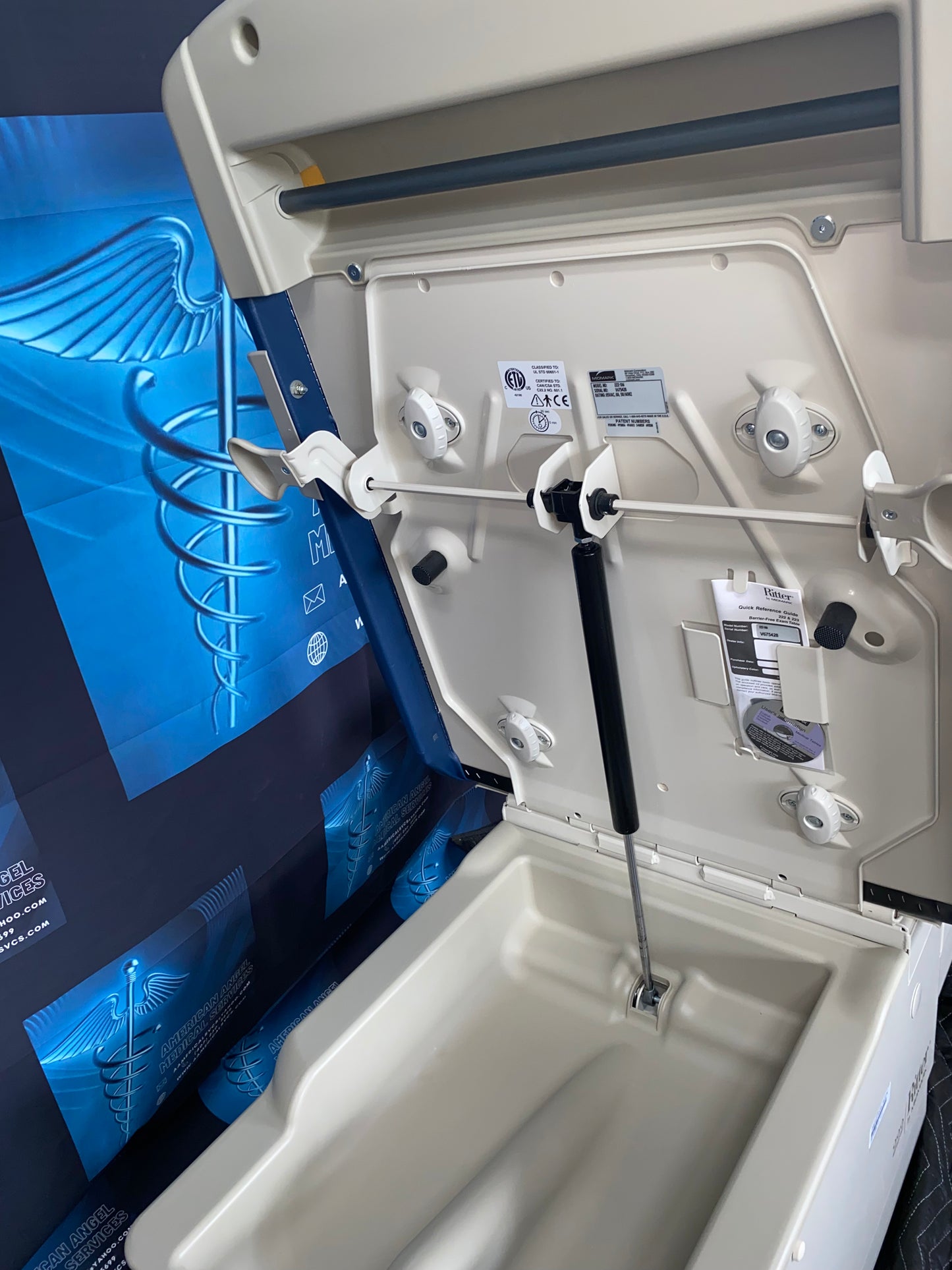

• Back: 0° to 80° ± 5° (Gas spring assist)
• Pelvic Tilt: Max: 7°; Min: 1.5°

Paper Roll Holder

• Holds 21” x 3.5” paper rolls (53.3 cm x 8.9 cm)

Electrical

• 115 VAC, 50/60 Hz, 11 Amps (with heater & receptacle –016)
• 230 VAC, 50/60 Hz, 2.75 Amps (basic unit –017, excludes receptacle)

Safety Standards

• UL 60601-1
• CAN/CSA No. 601.1-M90
