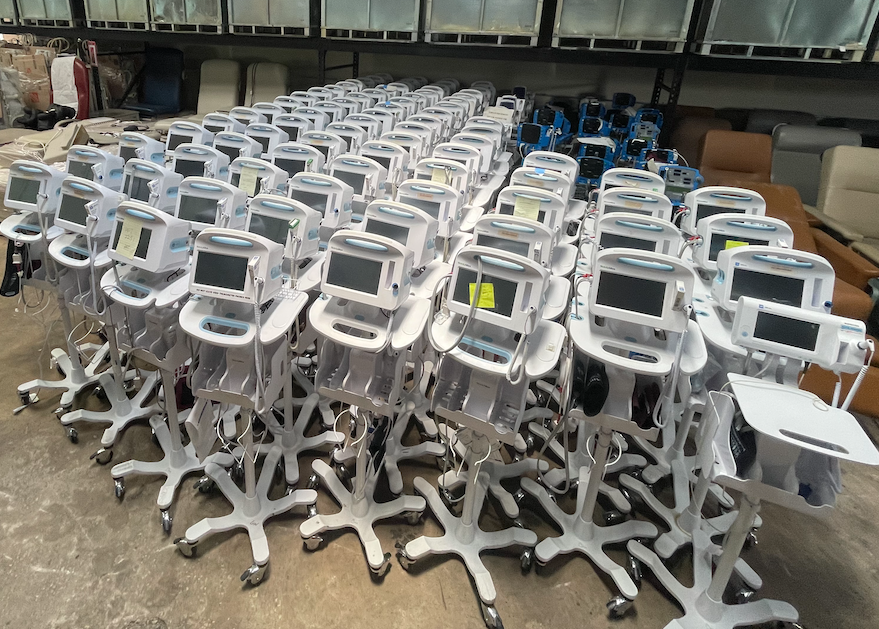

Welch Allyn Vital Sign Monitor Connex 6700 Series

The Welch Allyn Connex 6700 Vital Signs Monitor is a proven connected vital signs solution for busy general care floors with the option to expand to continuous monitoring for higher-risk patients. Its intuitive, touchscreen monitor features bright, vivid colors for improved workflows and training. Adaptable for most low-acuity healthcare environments and clinical workflow, it can measure pulse oximetry, non-invasive blood pressure, temperature, EtCo₂, respiration, and more. Multiple profiles support spot check vitals, averaging, intervals, and continuous monitoring workflows.

Welch Allyn Connex 6700 Vital Signs Monitor Features

• SureBP technology can provide BP in only 15 seconds.
• SureTemp Plus Oral/Axillary or Braun ThermoScan PRO 6000 Tympanic Thermometry.
• Choice of leading SpO₂ technologies: Masimo and Nellcor.
• Medtronic Microstream Capnography (EtCo₂) with Integrated Pulmonary Index (IPI).
• 3- or 5-Lead ECG with arrhythmia detection.
• Masimo Acoustic Respiratory Monitoring (RRa).
• Secure: FIPS-approved encryption of transmitted data and a range of additional security features.
• Customizable workflow options for documenting patient observations (ie. Is and Os, Pain Scale) and vitals modifiers (ie. BP cuff location).
• Automated Early Warning Scoring to help clinicians identify and respond to signs of patient deterioration (ie. MEWS, NEWS).
• Single sign-on options - including integration with Imprivata - available for quick, secure clinician login.
• Connectivity to Detecto, Health o meter, and SECA scales.
• Masimo non-invasive continuous monitoring of total hemoglobin(spHb).
• EarlySense contact-free respiratory monitoring and motion sensing.
• Connex Central Station integration for centralized monitoring and alarm management.
• Options for WiFi and Ethernet connectivity to EMR systems.

Welch Allyn Connex 6700 Vital Signs Monitor Specifications

• Physical Dimensions: 10" x 11" x 6" (25.4 cm x 27.9 cm x 15.2 cm).
• Weight (including battery): 9.5 lb (4.3 kg).
• Display Area: 8" x 4" (20.3 cm x 10.2 cm).
• Resolution: 1024 x 600 pixels.
• Battery: 9-cell battery.
  • Rating: 10.8 V, 6.75 Ah (73 Wh).
  • Composition: Lithium-ion.
  • Charge Time to 80% Capacity: 2 hr 25 min.
  • Charge Time to 100% Capacity: 4 hr.
  • Battery Life: 7.8 hr.
• NIBP:
  • Systolic Range:
    • Adult: 30 to 260 mmHg (StepBP, SureBP).
    • Pediatric: 30 to 260 mmHg (StepBP, SureBP).
    • Neonate: 20 to 120 mmHg (StepBP).
  • Diastolic Range:
    • Adult: 20 to 220 mmHg (StepBP, SureBP).
    • Pediatric: 20 to 220 mmHg (StepBP, SureBP).
    • Neonate: 10 to 110 mmHg (StepBP).
  • Cuff Inflation Target:
    • Adult: 160 mmHg (StepBP).
    • Pediatric: 120 mmHg (StepBP).
    • Neonate: 90 mmHg (StepBP).
  • Maximum Target Pressure:
    • Adult: 280 mmHg (StepBP, SureBP).
    • Pediatric: 280 mmHg (StepBP, SureBP).
    • Neonate: 130 mmHg (StepBP).
  • Blood Pressure Determination Time (Typical): 15 seconds (SureBP).
  • Blood Pressure Accuracy Meets or Exceeds: ANSI.AAMI SP10:2002 standards.
• SureTemp Temperature Range: 80 degrees F to 110 degrees F (26.7 degrees C to 43.3 degrees C).
• Braun Temperature Range: 68 degrees F to 108 degrees F (20 degrees C to 42.2 degrees C).
• SpO₂ Performance Measurement Range: 1 to 100%.
• Operating Temperature: 50 degrees F to 104 degrees F (10 degrees C to 40 degrees C).
• Storage Temperature: -4 degrees F to 122 degrees F (-20 degrees C to 42.2 degrees C).
• Operating Altitude: -557 to 10,000 feet (-170 m to 3,048 m).
• Operating Humidity: 15 to 95% non-condensing.
• Storage Humidity: 15% to 95% non-condensing.
